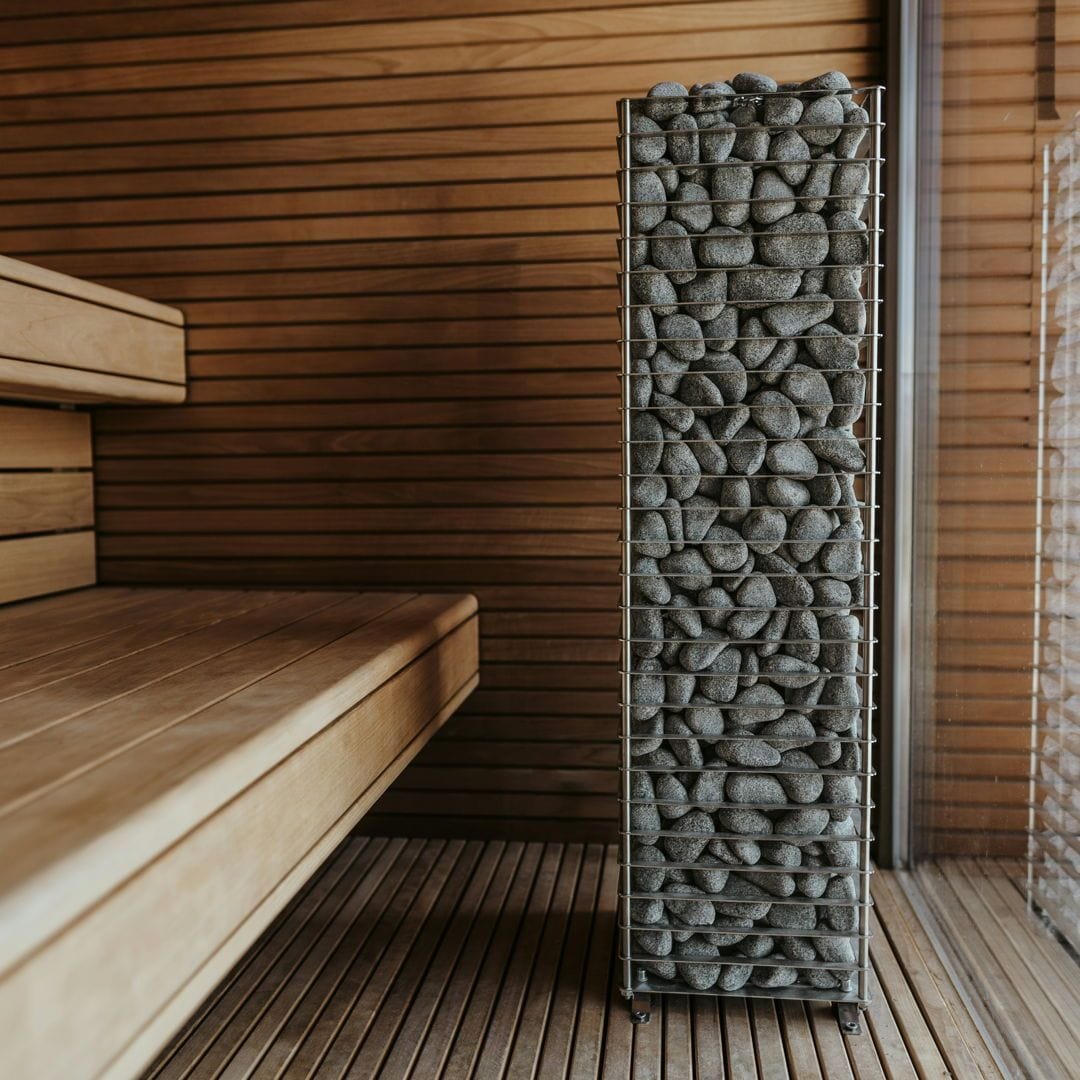

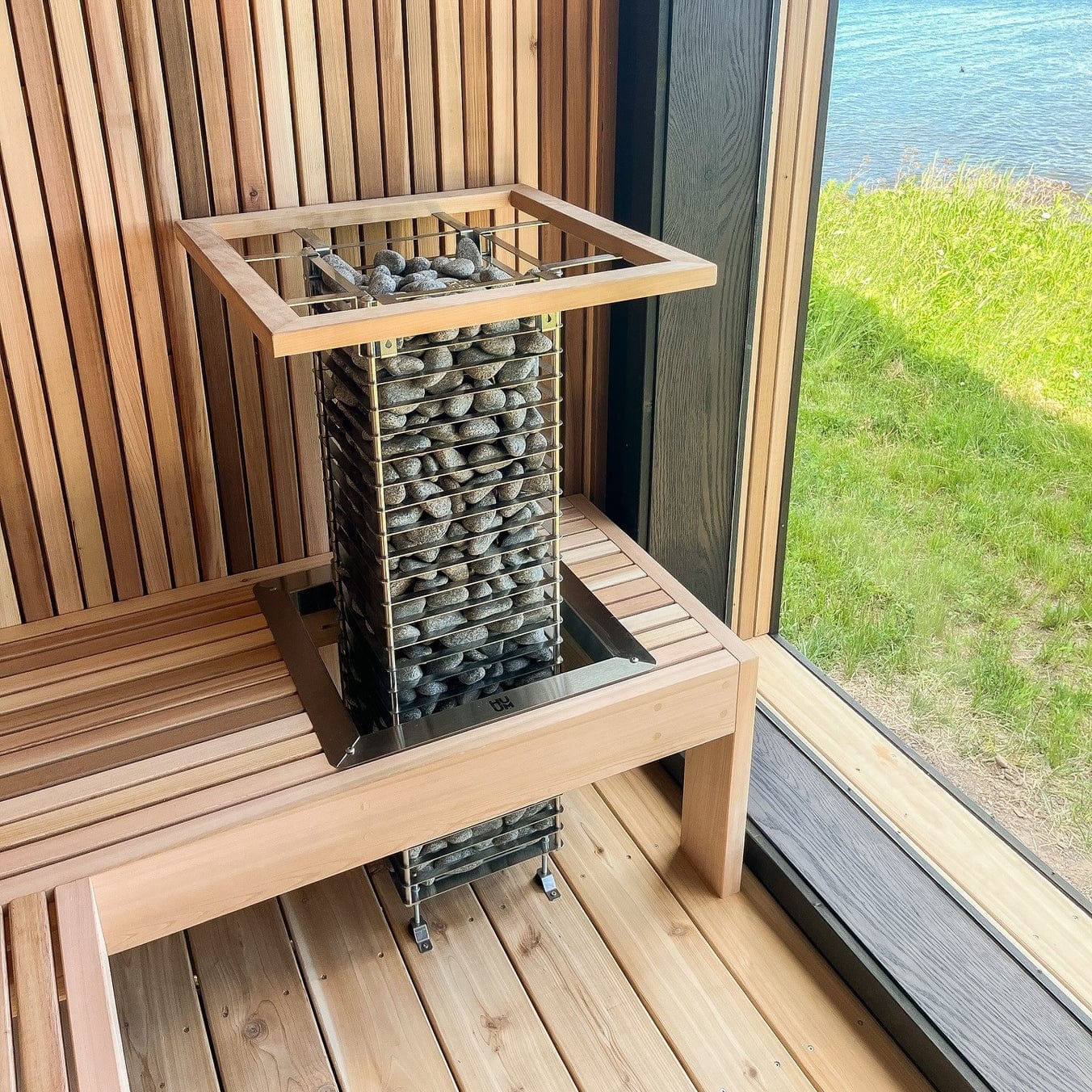

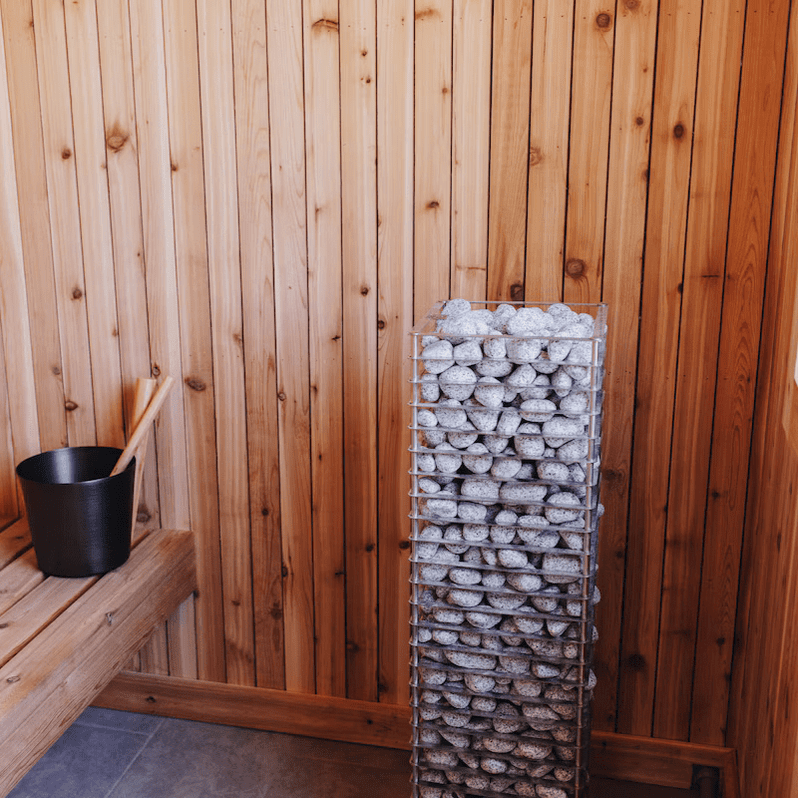

HUUM CLIFF Series 10.5kW Sauna Heater Package

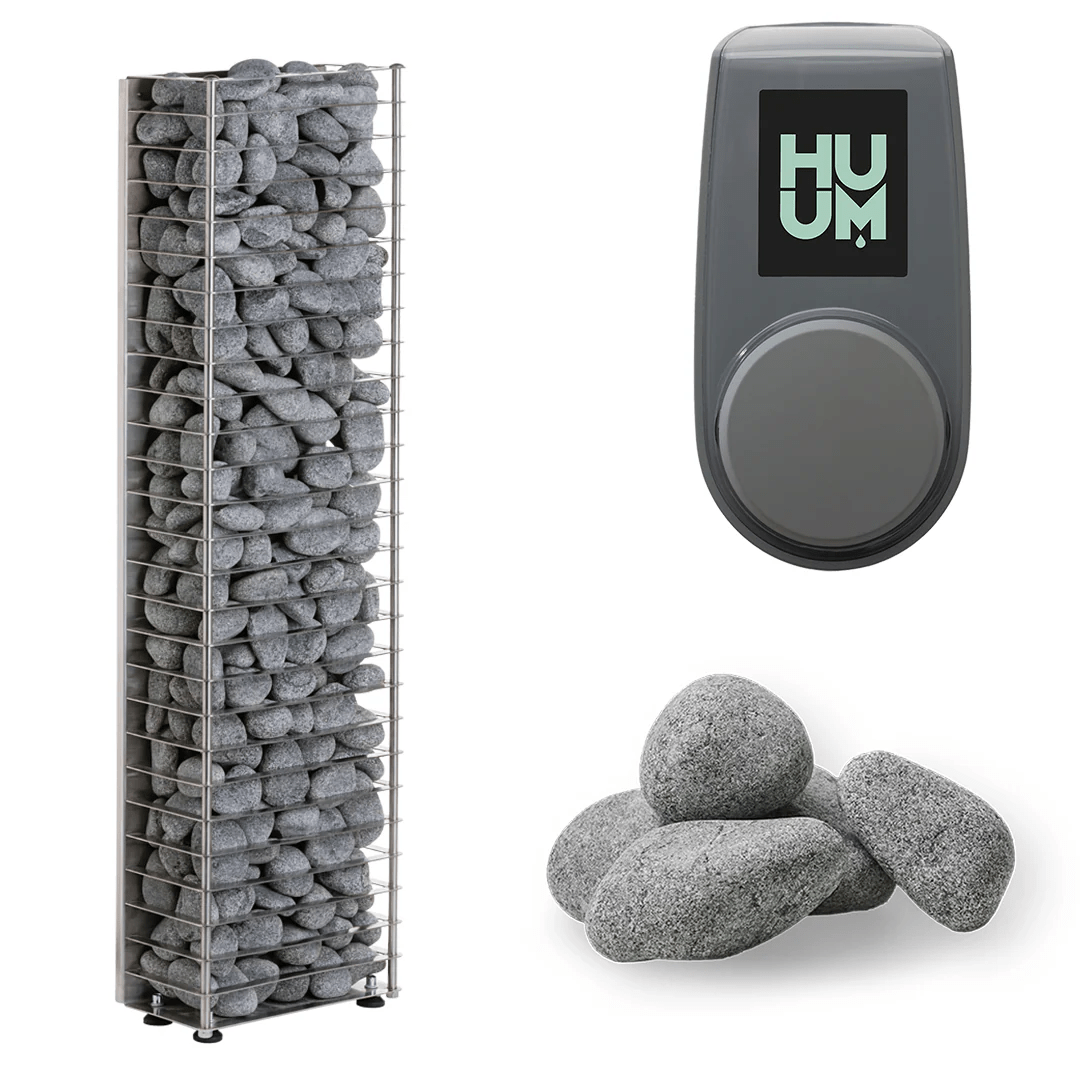

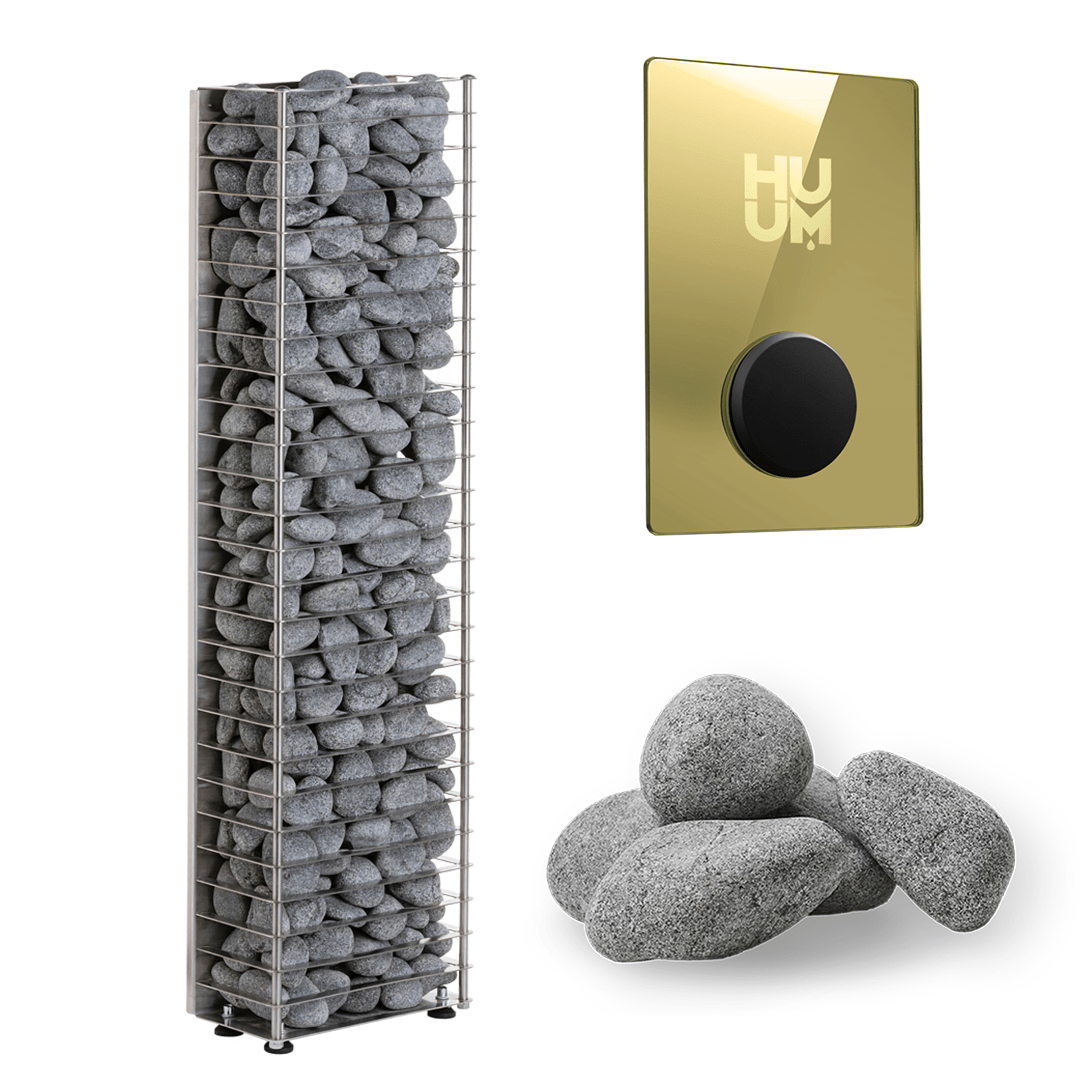

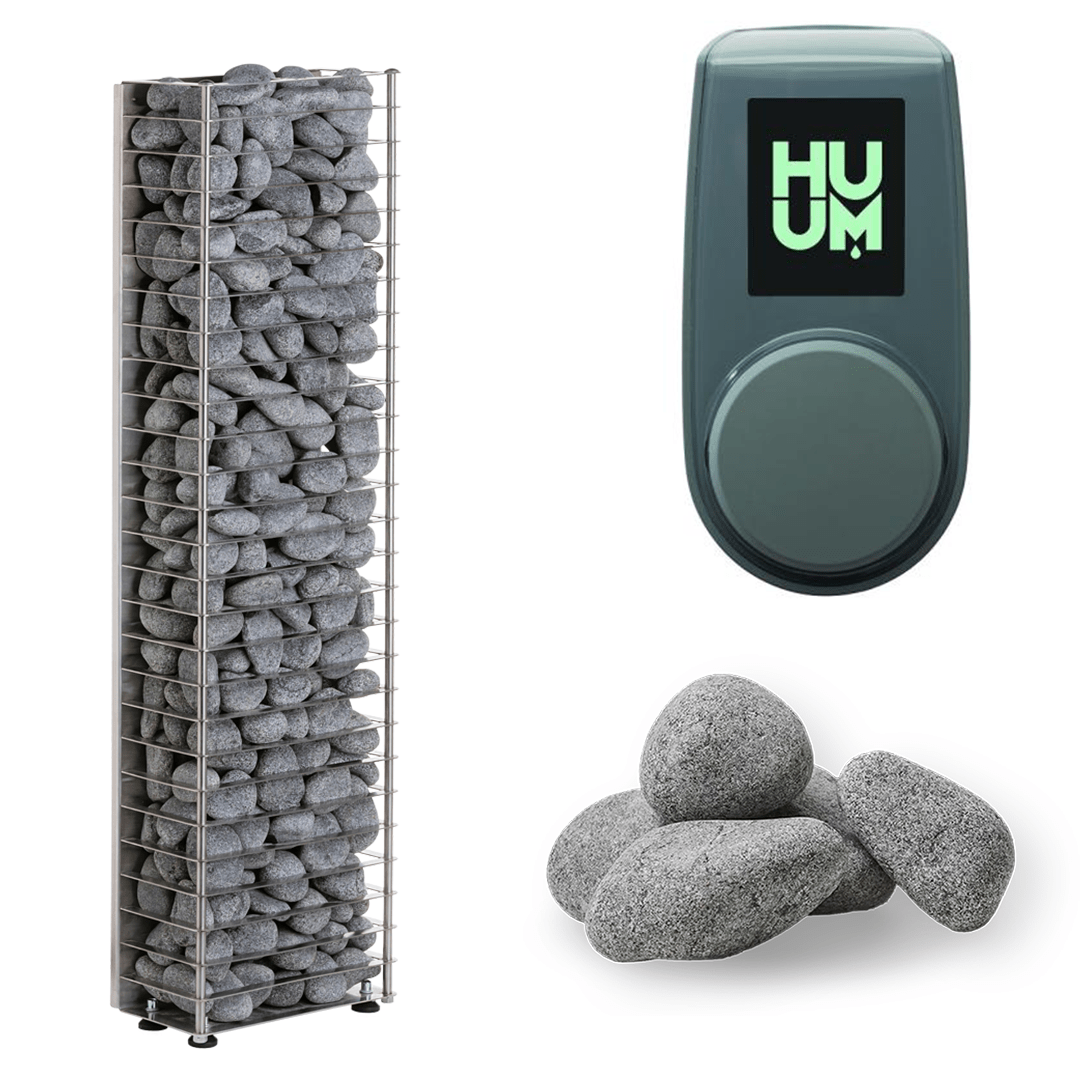

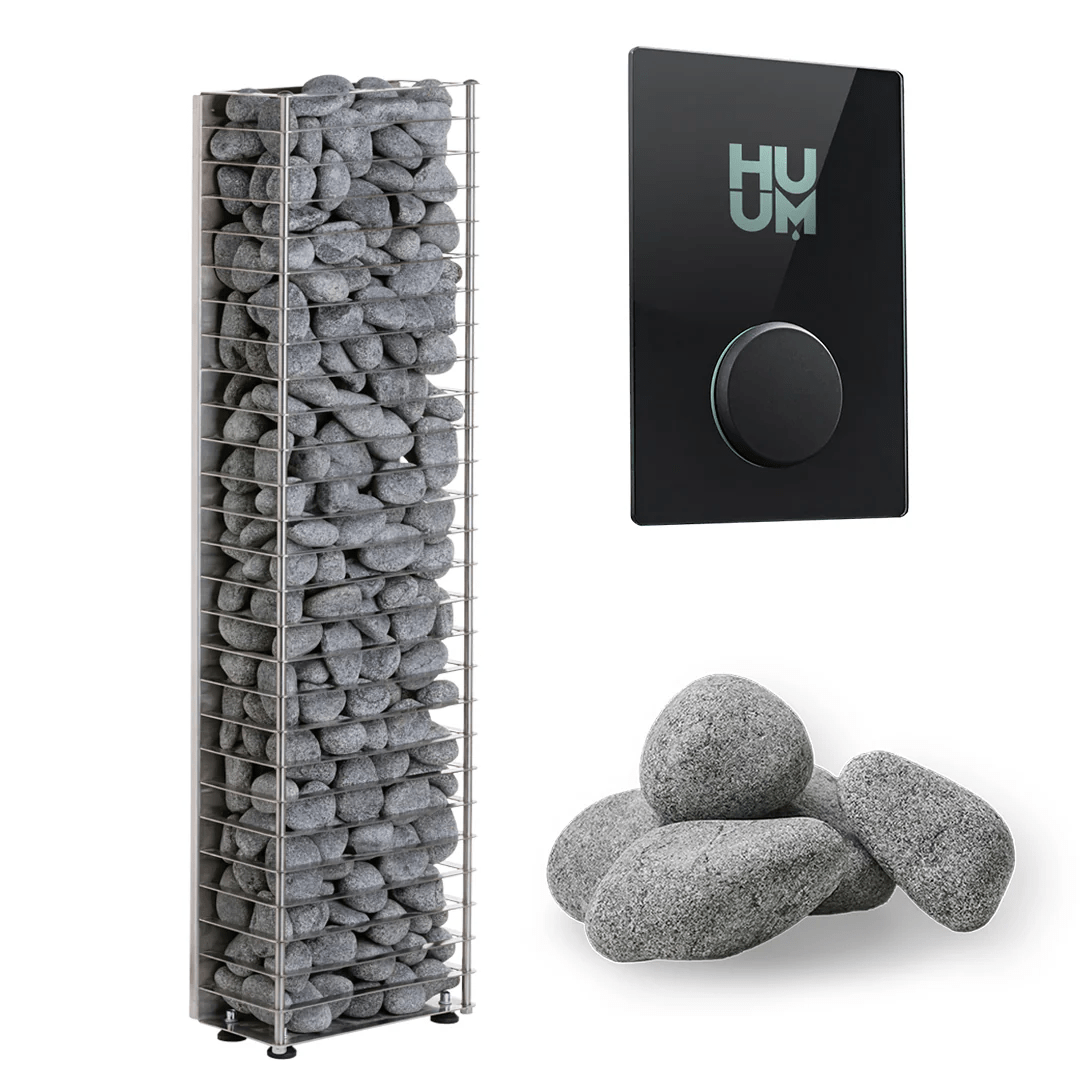

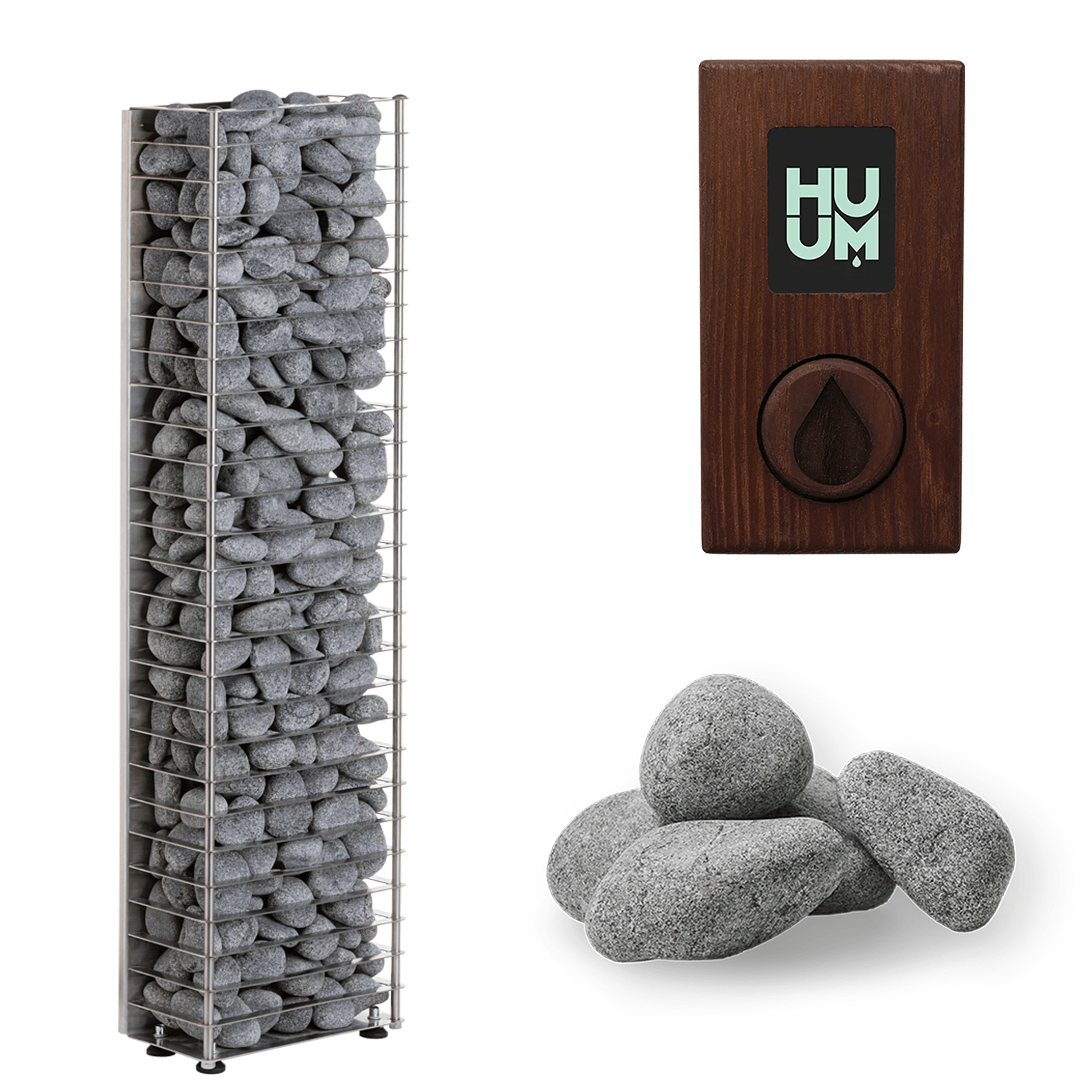

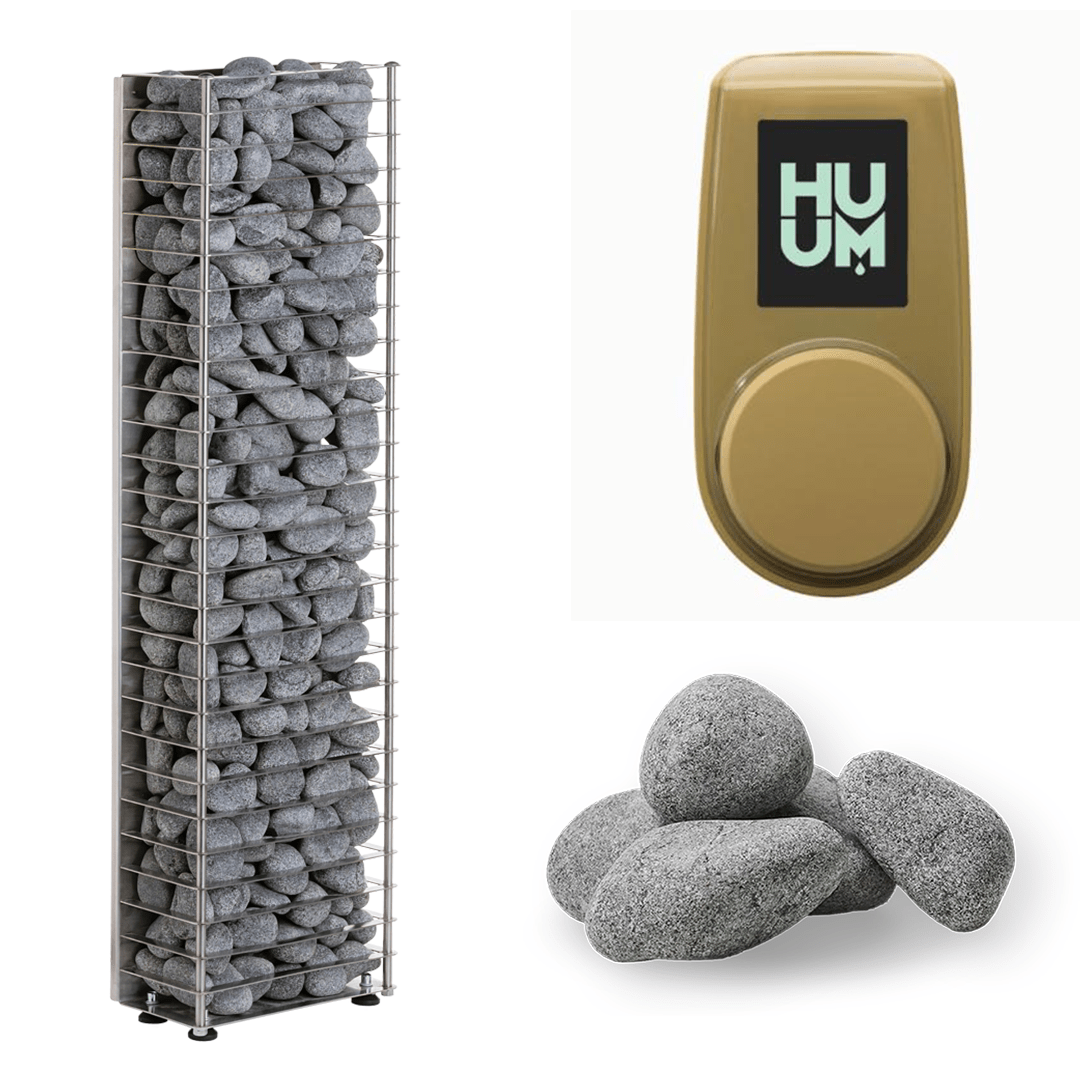

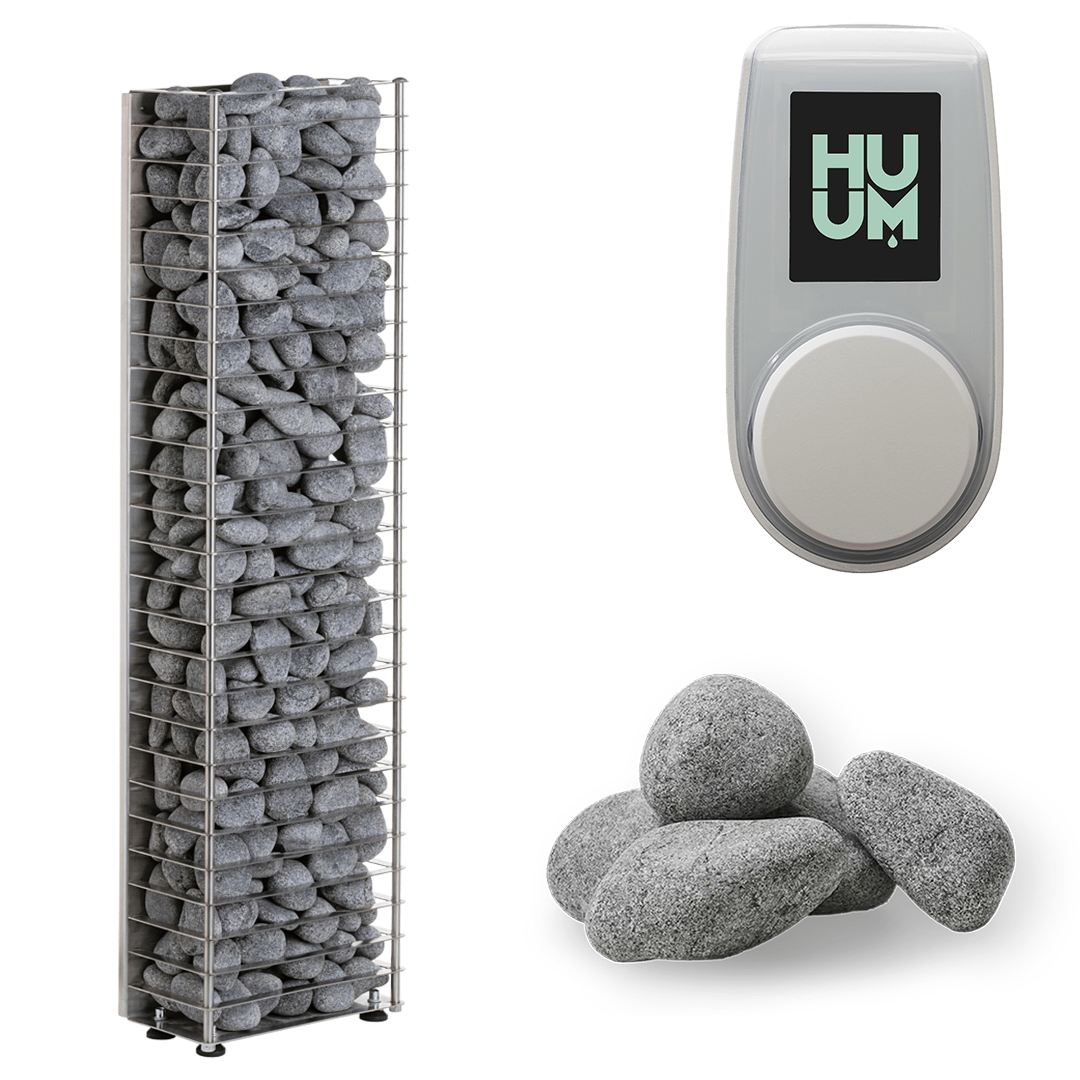

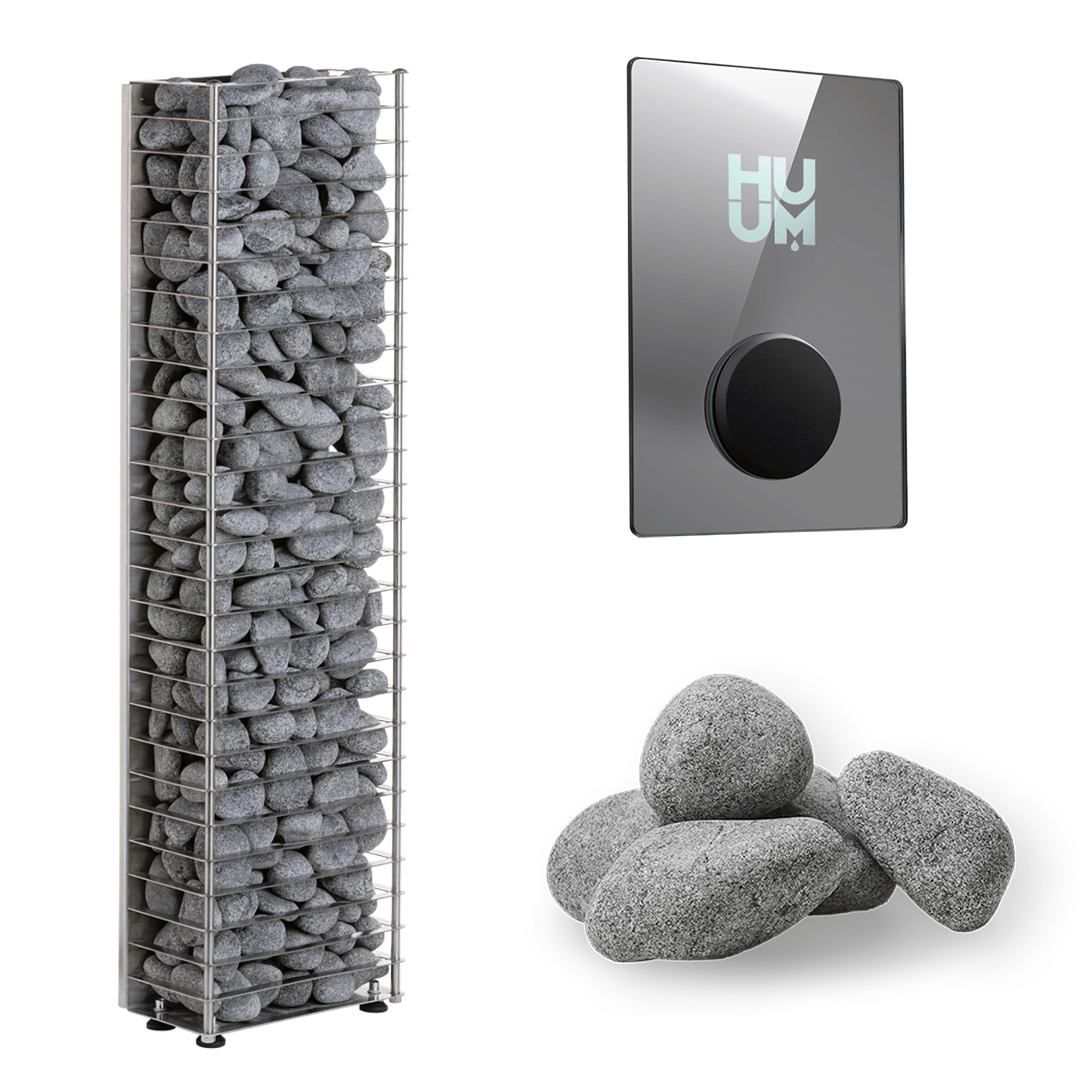

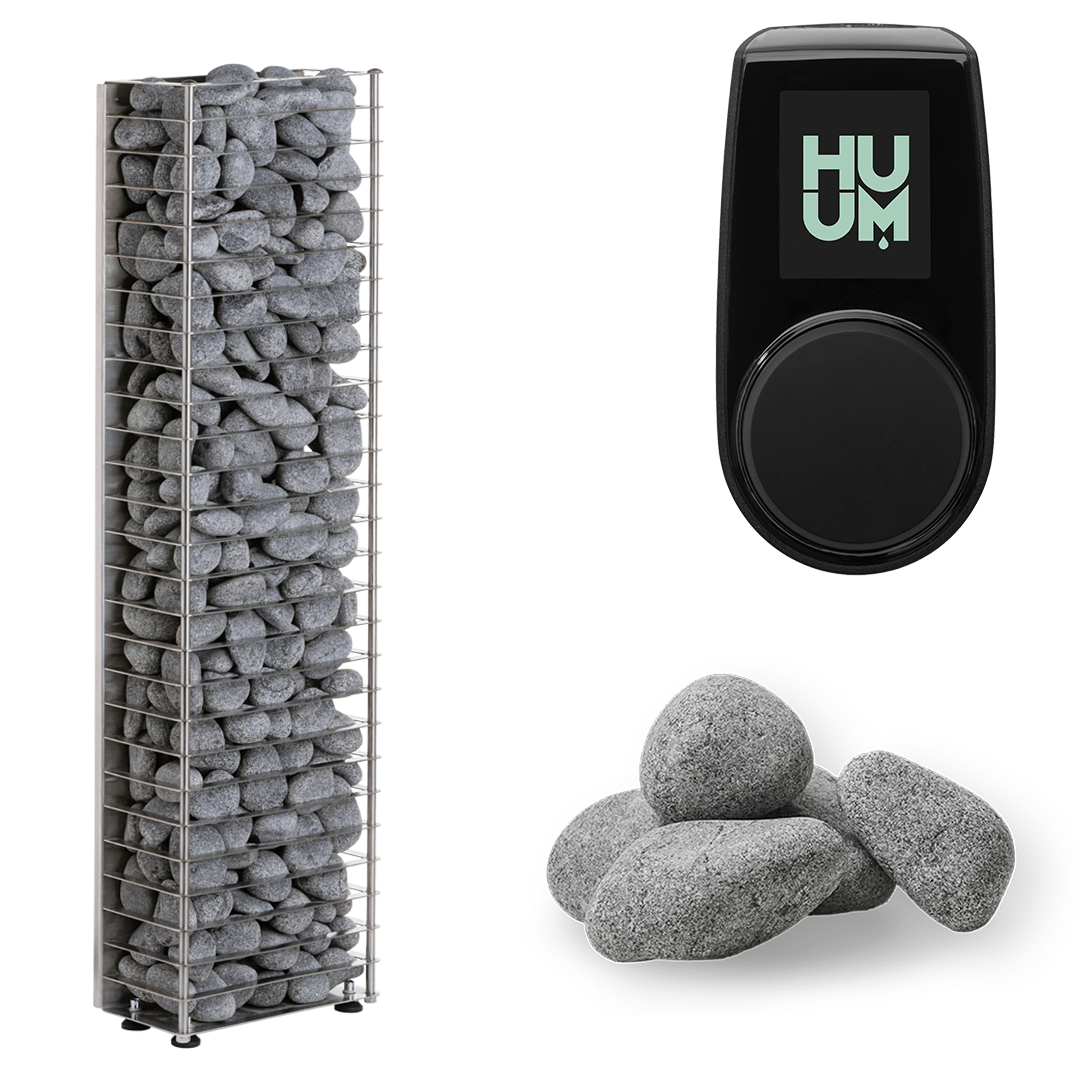

The HUUM CLIFF sauna heater package includes the CLIFF 10.5kW heater, UKU control (WiFi optional), and sauna stones - all components necessary for creating your ideal sauna experience. This package is suitable for sauna rooms up to 566 cubic feet (CF) in size.

Features

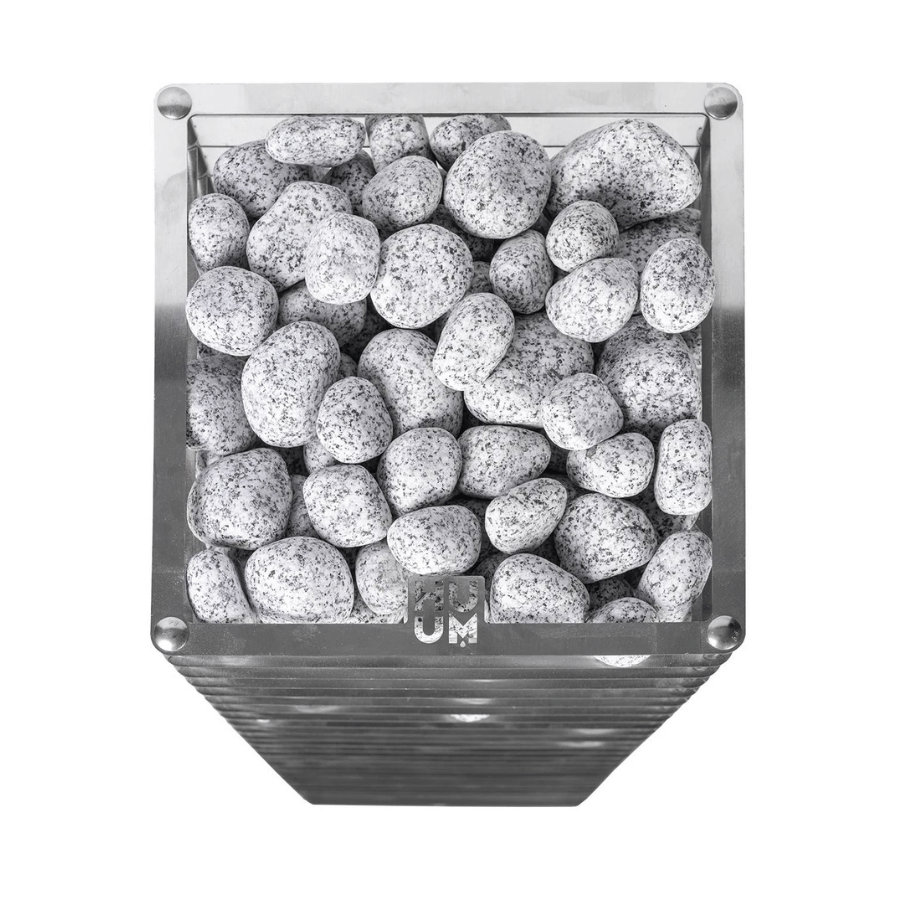

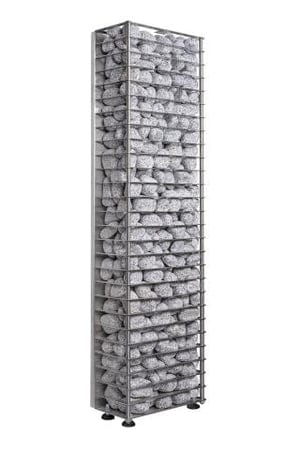

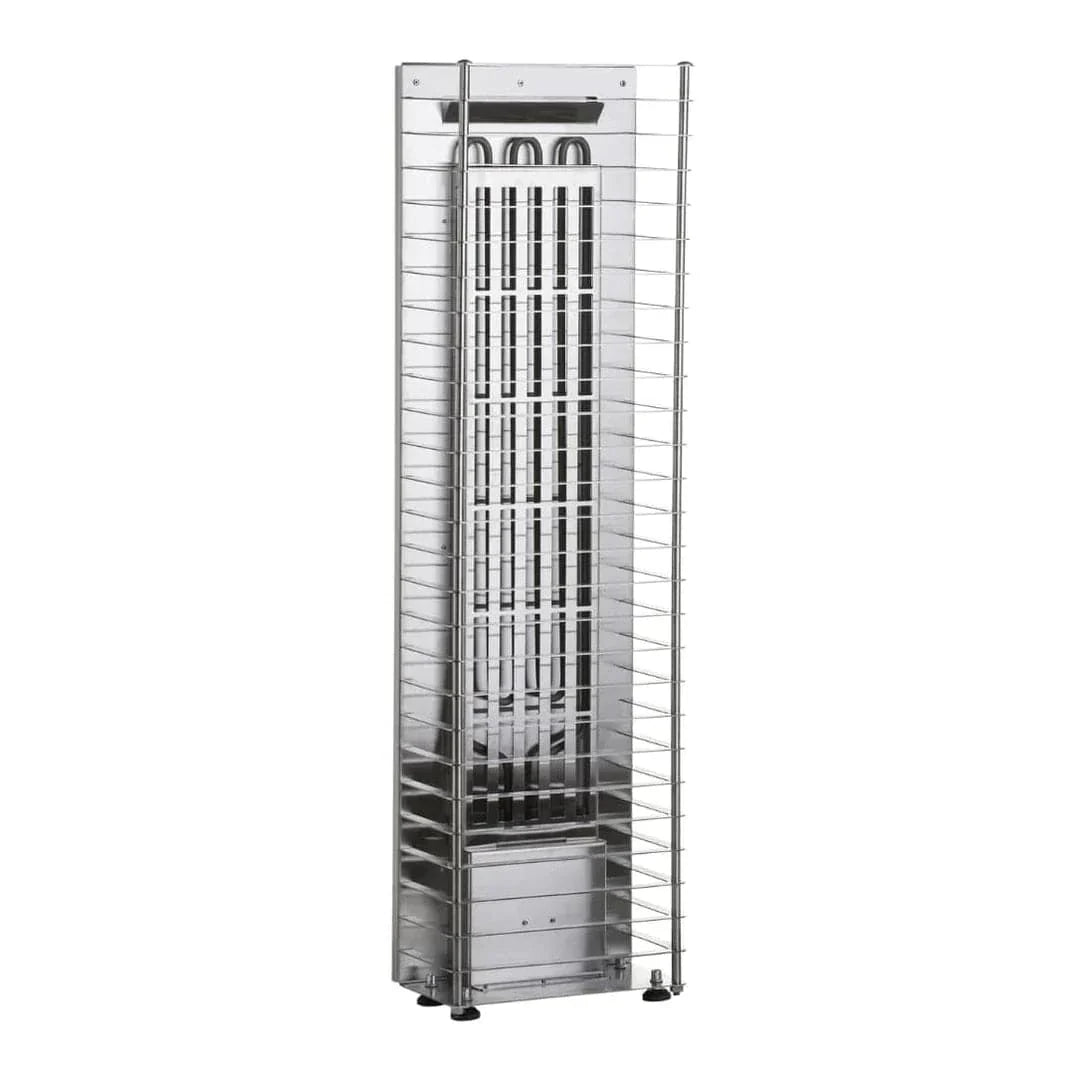

CLIFF 10.5kW Sauna Heater

Slim design
Suitable for use in saunas with limited space
Small safety distances
Heats up to 25% faster due to internal air duct
For sauna rooms from 354 to 566 cu. ft.
Works with UKU controls
Works with UKU extension box
165 pound stone capacity
Removable rib(s) for more accurate stacking of stones

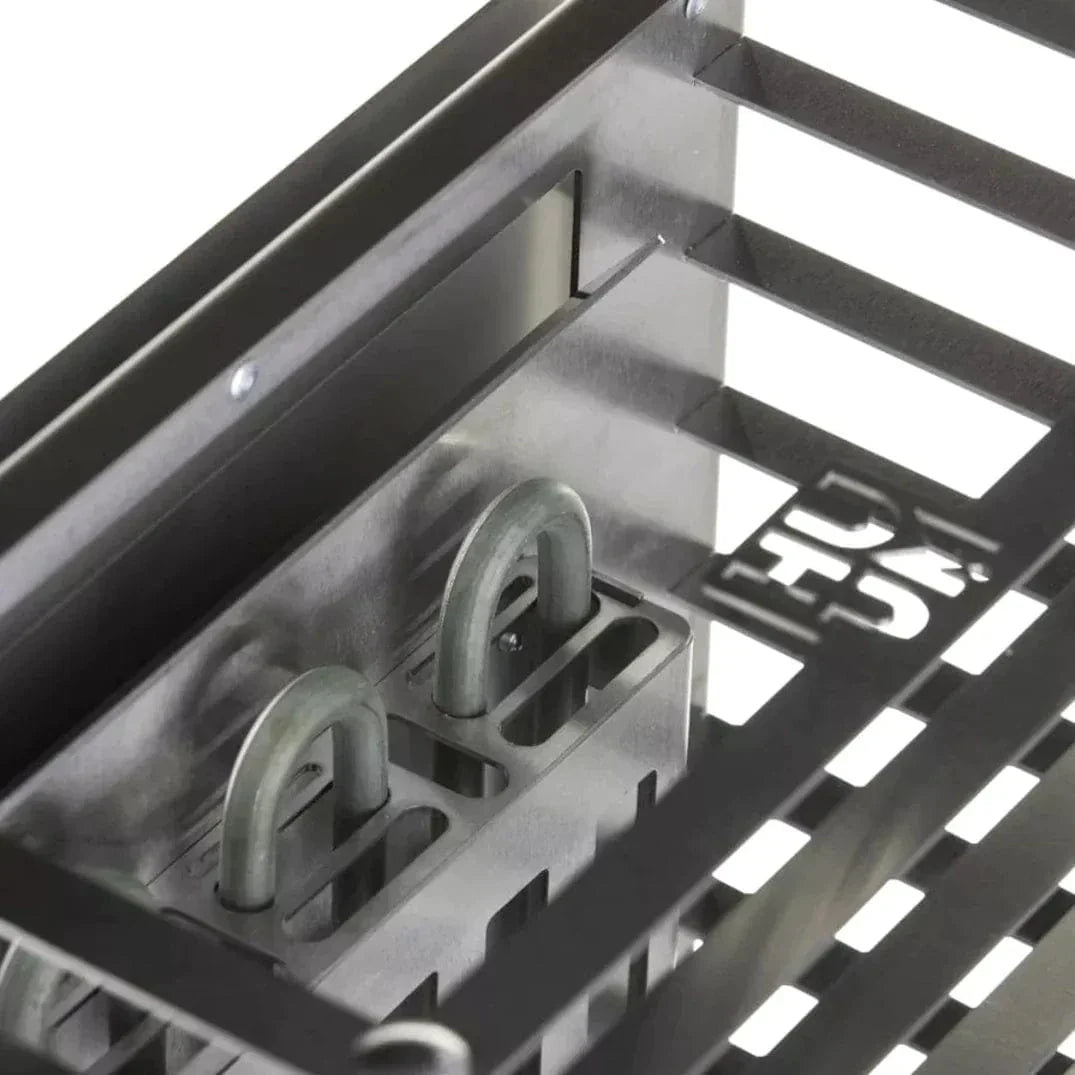

Direct contact between stones and heating elements
More exposed stones creates a longer and milder heat
Stainless steel construction

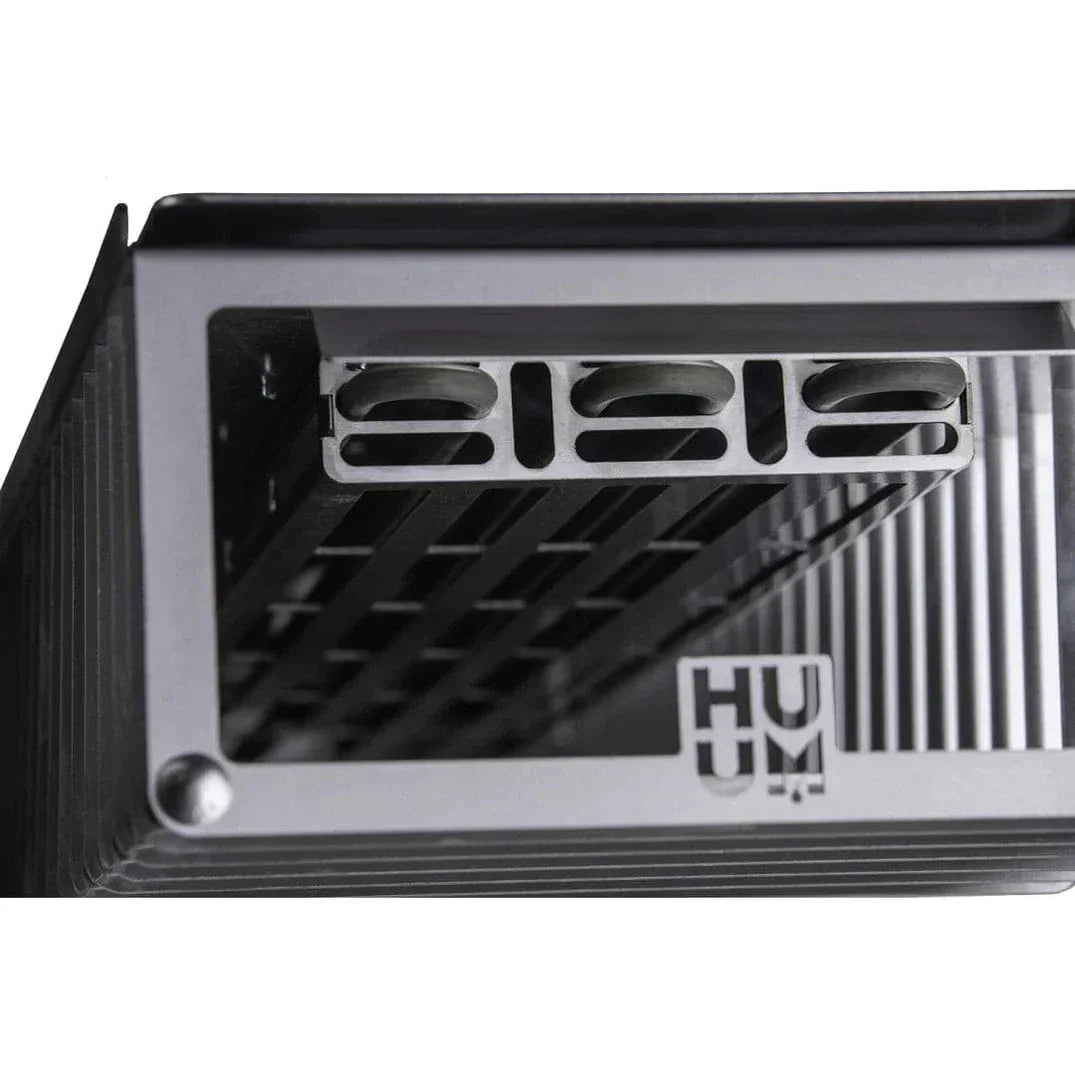

Stainless steel, industrial quality heating elements
Floor model
Designed, engineered, and made in Estonia
Dimensions: 10.6" W (270mm) x 10.6" W (270mm) x 38.4" H (975mm)
Limited 5-year warranty (excluding elements)
Installation: Free-Standing
Sauna room: 353-600 ft³
Amps: 43.75 A
Fast heat up times: ~20-30 minutes

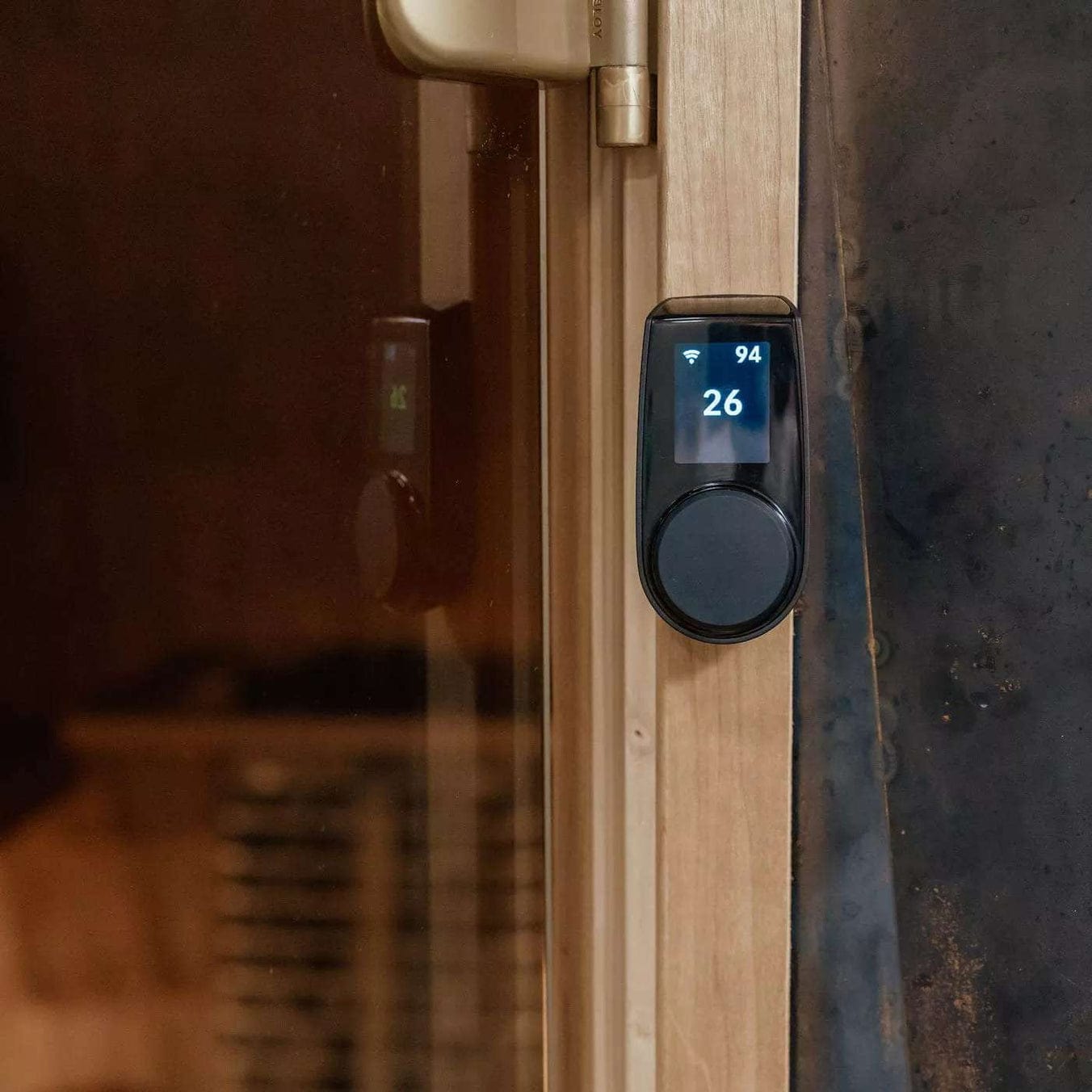

UKU

Sleek Black control display panel
Multiple Color Options available
Settable on/off, time, temperature, and delay
Settable temperature range of 104-230F
Delayed start up to 48hrs in advance

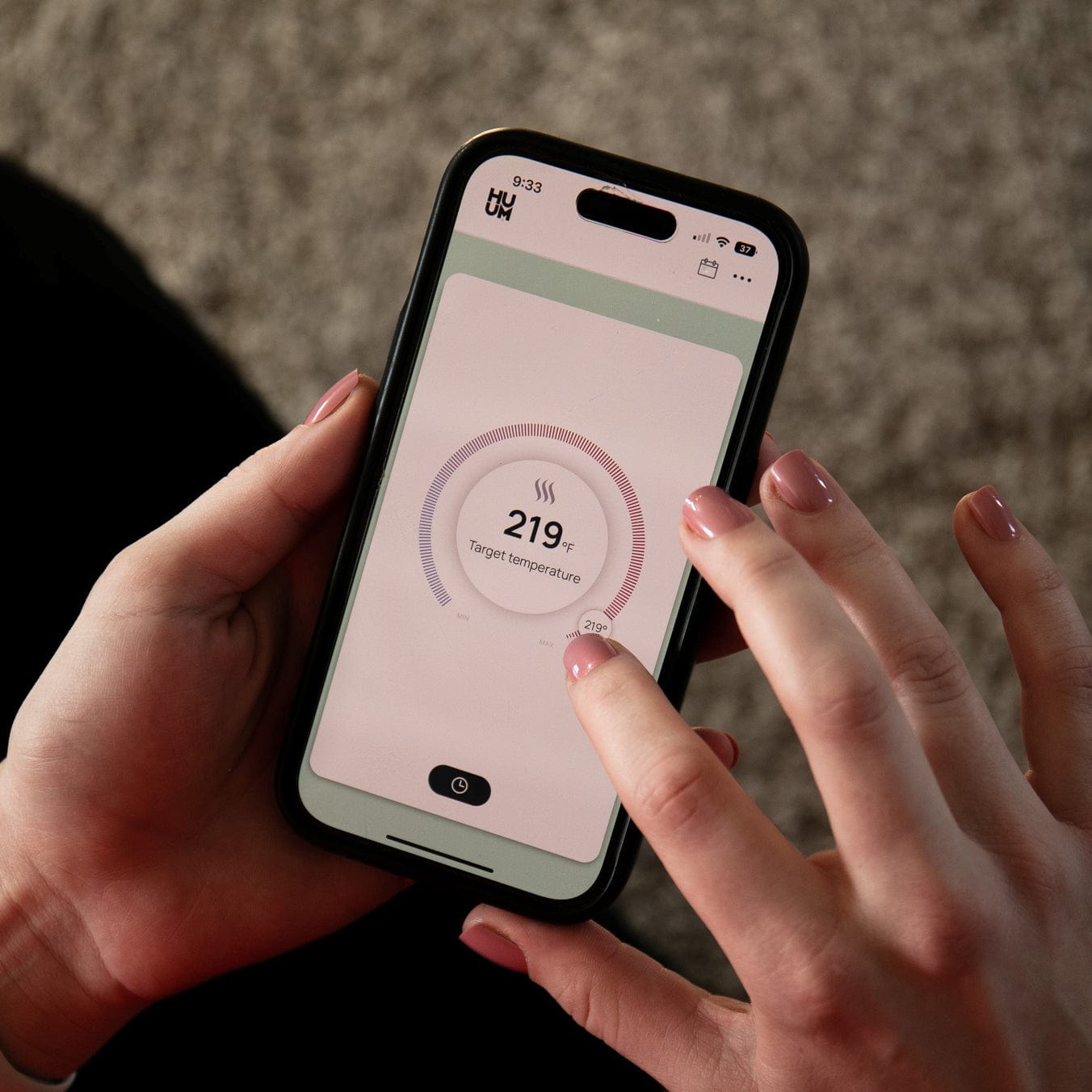

Optional Built-in Wi-Fi interface for HUUM mobile app
8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
Inside/outside sauna room installation
Optional smart heating setting
Available decorative control display panels
Displays set temperature and room temperature
Temperature sensor
Door sensor to keep the heat inside the room
Remotely located main control module
Connects to lights and ventilation
Overheat protection
Child safety lock
Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

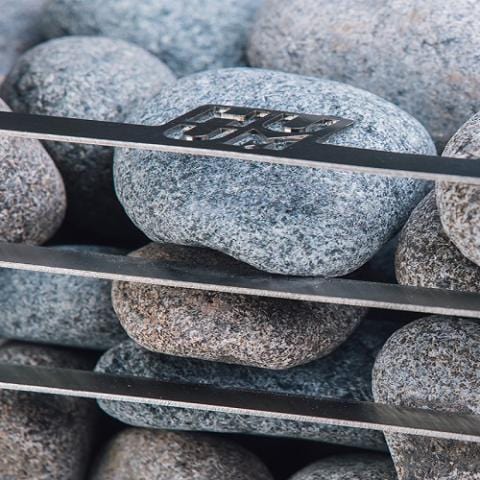

Stones 12

Olivine diabase sauna stones
Rounded shape to complement heater design
Durable with high-heat capacity
Stones range from 1" to 2" (3-5 cm)

Specifications

CLIFF 10.5
Kilowatt Rating	10.5 KW
Minimum Cubic Feet	354 CF
Maximum Cubic Feet	566 CF
Heater Weight	37.5 lbs
Shipping Weight with Sauna Stones	202.5 lbs
240V, Single Phase Amperage	--
Width	10.6" W (270mm)
Depth	10.6" W (270mm)
Height	38.4" H (975mm)


UKU
Minimum Temperature Setting	104 F
Maximum Temperature Setting	230 F
Shipping Weight	20 lbs
Console Dimensions
Width	2.2" (55mm)
Depth	0.9" (22mm)
Height	4.1" (105mm)
Main Module Dimensions
Width	3.5" (90mm)
Depth	2.3" (58mm)
Height	5.6" (142mm)
Display Panel Cable
Length	9.8 ft
AWG	22
Temp Sensor Cable
Length	16.4 ft
AWG	24
Door Sensor Cable
Length	16.4 ft
AWG	24
